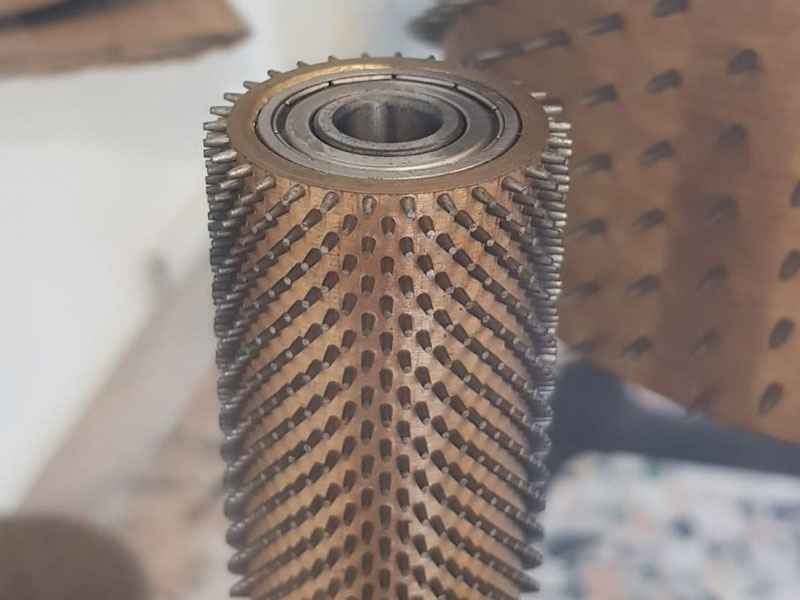

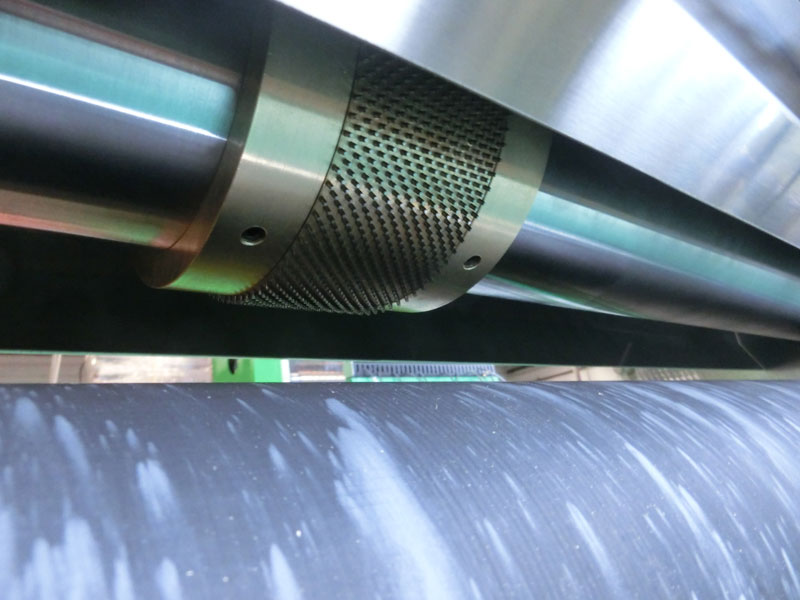

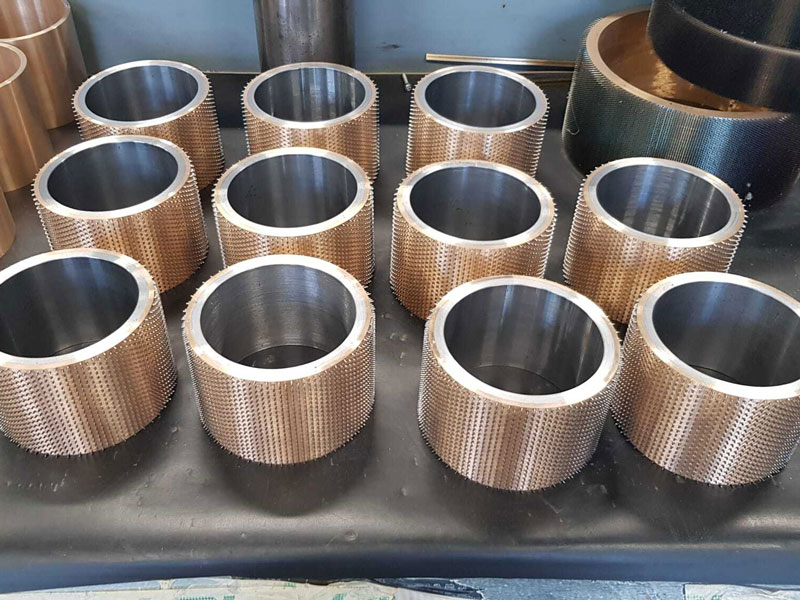

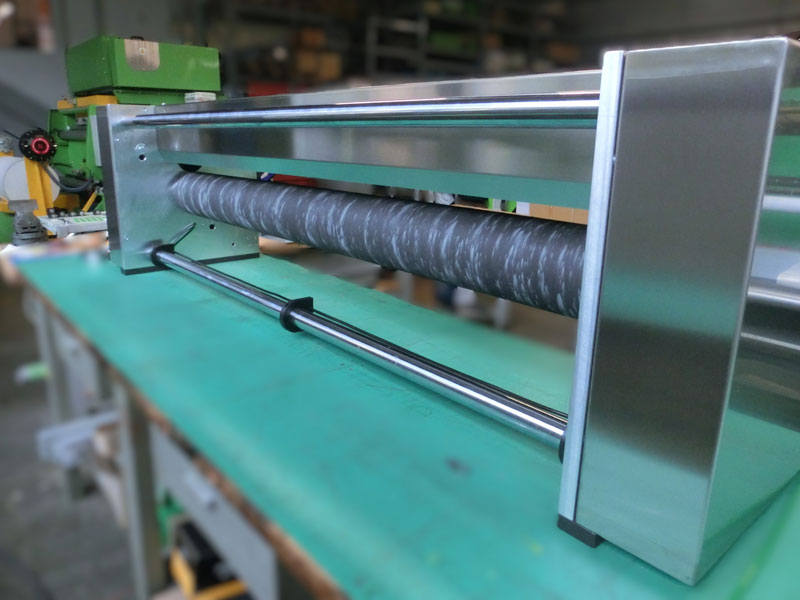

It consists of a perforating assembly composed of a shaft on which the embossing cylinders are mounted and a rubber contrast roller. The latter brings the moving material into contact with the needle shaft. The drive system consists of a driver, servo motor and encoder, making it possible to synchronize the speed of rotation of the shaft to that of the material up to a maximum speed of 300 meters per minute, thus perfectly capable of supporting all the speeds on the market.

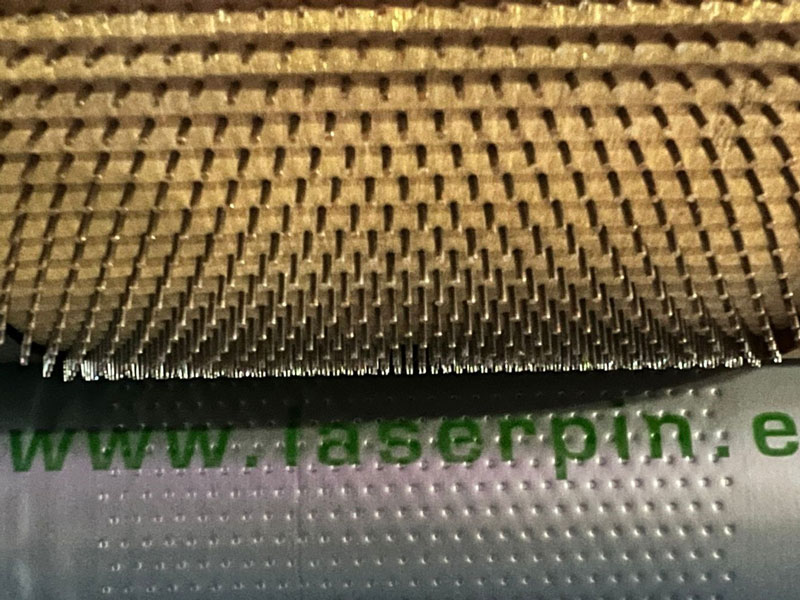

The drilling process is activated by pneumatic cylinders that move the support roller in contact with the drill shaft. An integrated penetration adjustment system adjusts the depth with which the needles penetrate the material, allowing the level of embossing penetration to be controlled. Different densities are available according to various needs and applications. The EM100 guarantees an excellent result even at low densities. The main applications of embossing involve non-slip systems for bags, to increase grip, and to engrave custom logos and imprints (embossed designs).
